MicroSpider 2 Industrial
Reliable data logging and control for demanding industrial applications.
The MicroSpider2 Industrial is a robust, DIN-rail-mounted telemetry and data logging system designed for seamless integration into industrial control panels and infrastructure. With versatile sensor compatibility, low-power operation, and flexible communication options, it delivers reliable data collection, reporting, and alarm notifications to keep critical operations running smoothly.
Key Features
Broad Sensor Compatibility
Supports analogue, SDI-12, Modbus RTU inputs for a wide range of monitoring applications.
Compact DIN-Rail Design
DIN-rail mountable enclosure for easy integration into control panels and industrial cabinets.
Low Power Operation
Designed for minimal power draw with optional internal and external battery backup and solar charging capability, ideal for remote or off-grid sites.
Customisable Data Reporting
Generate CSV reports at user-defined intervals and deliver via HTTP/HTTPS, FTP, email, or DNP3 for easy SCADA integration.
Edge Computing
Leverage virtual channels to create calculated values such as compensated flows, totals, or status logic without external processing.
*(Battery life based on 1-hour logging, daily reports, 1 alarm/week via LTE Cat-M1)
-
Enclosure: DIN‑rail mountable ABS (fits standard DIN brackets)
Size & Weight: 156mm (W) × 60mm (H) × 87mm (D), approx 500 g
Temperature Range: –5°C to +50°C (optional –20°C to +60°C variant)
Mounting: DIN‑rail compatible
Warranty: 12‑month manufacturers warranty (return‑to‑base)
-
Power Supply: Nominal 12 V DC, min 1A (solar or external)
Battery Backup: Optional internal user‑replaceable 9 V battery
Charging: Built‑in charger regulator supports 12 V SLA battery charging from solar or 16–30 V DC power supply.
Power Consumption:
Standby ~65 μA;
Active <3 mA (modem off);
100 mA (modem on, LAN external);
up to 250 mA when communication active
-
Standard Inputs:
– 4 x Analog inputs
– 4 x Digital inputs
– 4 x System inputs (external battery voltage, charger voltage, system temp, LAN power voltage)Optional Inputs:
Up to 20 × SDI‑12, Modbus
GPS via external interfacesDigital Inputs:
Configurable as switch, event, counter, utility meter or quadrature; supports 0‑12 V DC or voltage‑free switch contact; counter/event pulse width ≥ 5 ms, up to 100 Hz, rollover at 999,999
Analogue Inputs:
12‑bit resolution
calibratable
supports; 4–20 mA, 0–2.5V, 0–5V, 0–10V common ground typesOutputs:
1 × switched power for sensors/control
1 × open collector (accessory)
1 × low‑power sensor supply (3.3 V or 5 V selectable) -
Alarms:
Up to 16 alarms via SMS and email
Triggers configurable
Up to 3 phone numbers and 3 email per alarmMemory Type: Non-volatile flash
Storage Capacity: ~400,000 records
Report Format: CSV
-
Mobile: 4G LTE Cat-M1
Wired: Ethernet (via LANLink cable)
WiFi: Supported via HLink cable
Protocols:
– HTTP/HTTPS POST
– FTP
– Email
– DNP3(Level 2 support for SCADA integration)
Antenna Options: Internal (standard), External (optional)
-
Clock: On‑board Real‑Time Clock (RTC)
Sync: Automatic NTP Synchronisation -
📎 © 2026 Halytech. Specifications subject to change without notice.
How It Works
-
Mount the MicroSpider2 Industrial onto a DIN rail inside your control cabinet or enclosure. Connect your sensors, meters, or industrial equipment inputs.
-
Use Ethernet (LANLink) or Wi-Fi (HLink) to access the built-in web interface. Configure input types, sensor calibration, communication settings, and alarm triggers.
-
Collect data from connected sensors at scheduled intervals or in response to events. Log readings in onboard memory for secure retention as well as send reports to remote servers or SCADA systems.
-
Use alarms via SMS, email, or DNP3 to respond quickly to operational issues or performance changes.
Applications
Smart Building Control / Utility Metering

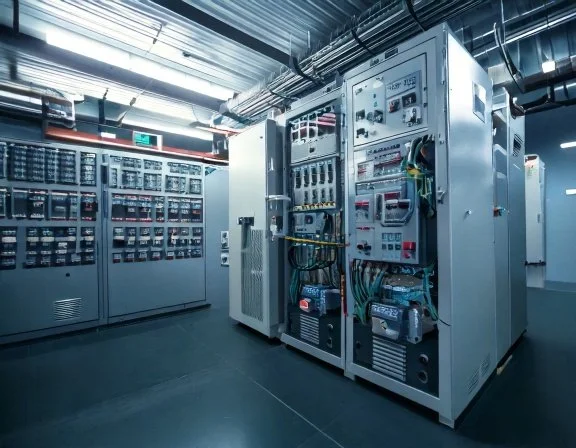

Industrial & Process Monitoring
Remote Asset Management
Simplify Your Industrial Monitoring
No complicated setups or unreliable readings. MicroSpider2 Industrial offers a DIN rail mount solution designed for accuracy and reliability.
